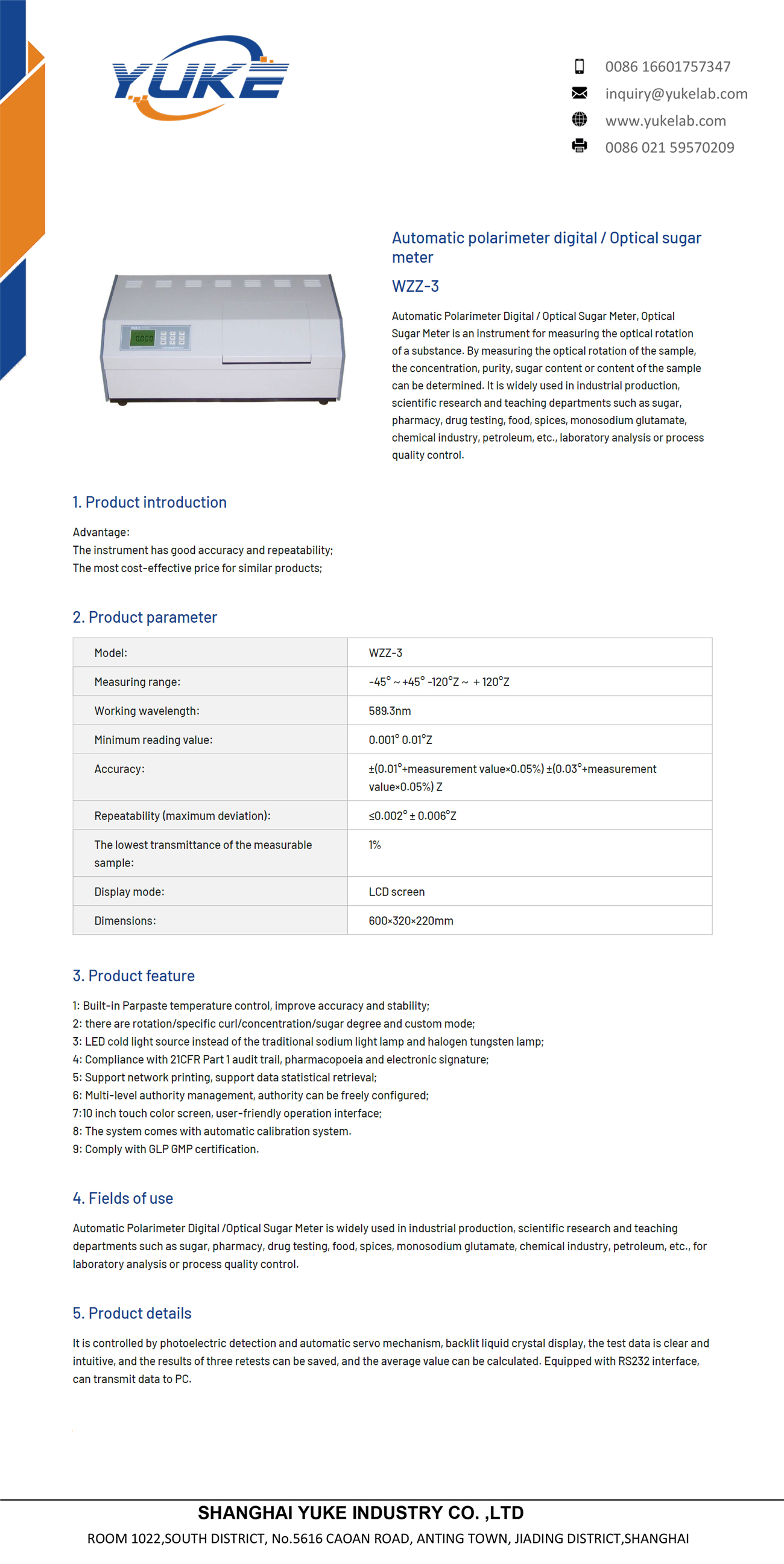

1. Product introduction
Advantage:
The instrument has good accuracy and repeatability;
The most cost-effective price for similar products;
2. Product parameter
Model: | WZZ-3 |
Measuring range: | -45°～+45° -120°Z～＋120°Z |
Working wavelength: | 589.3nm |
Minimum reading value: | 0.001° 0.01°Z |
Accuracy: | ±(0.01°+measurement value×0.05%) ±(0.03°+measurement value×0.05%) Z |
Repeatability (maximum deviation): | ≤0.002° ± 0.006°Z |
The lowest transmittance of the measurable sample: | 1% |
Display mode: | LCD screen |
Dimensions: | 600×320×220mm |
3. Product feature
1: Built-in Parpaste temperature control, improve accuracy and stability;
2: there are rotation/specific curl/concentration/sugar degree and custom mode;
3: LED cold light source instead of the traditional sodium light lamp and halogen tungsten lamp;
4: Compliance with 21CFR Part 1 audit trail, pharmacopoeia and electronic signature;
5: Support network printing, support data statistical retrieval;
6: Multi-level authority management, authority can be freely configured;
7:10 inch touch color screen, user-friendly operation interface;
8: The system comes with automatic calibration system.
9: Comply with GLP GMP certification.
4. Fields of use
Automatic Polarimeter Digital /Optical Sugar Meter is widely used in industrial production, scientific research and teaching departments such as sugar, pharmacy, drug testing, food, spices, monosodium glutamate, chemical industry, petroleum, etc., for laboratory analysis or process quality control.
5. Product details
It is controlled by photoelectric detection and automatic servo mechanism, backlit liquid crystal display, the test data is clear and intuitive, and the results of three retests can be saved, and the average value can be calculated. Equipped with RS232 interface, can transmit data to PC.
