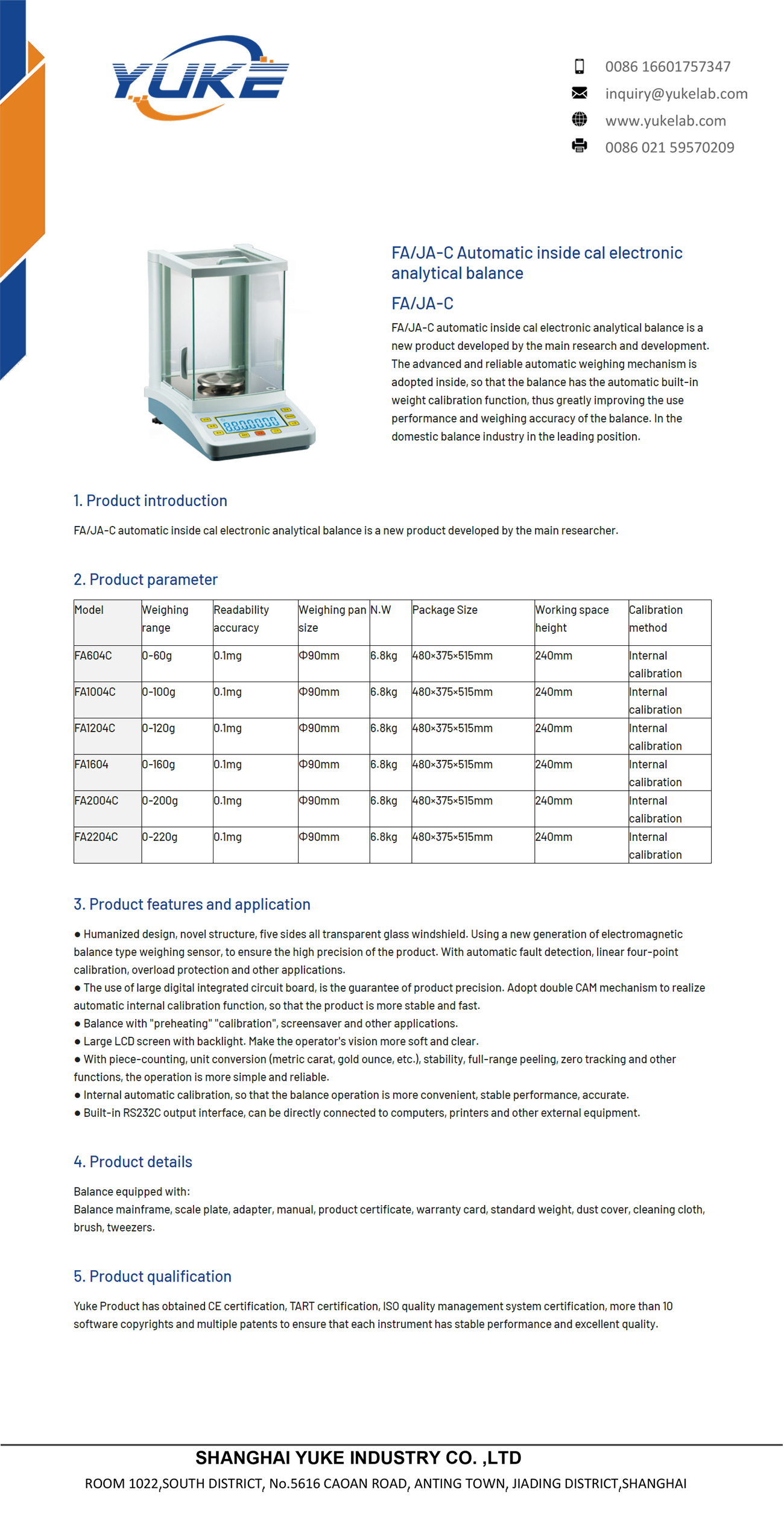

1. Product introduction
FA/JA-C automatic inside cal electronic analytical balance is a new product developed by the main researcher.
2. Product parameter
Model | Weighing range | Readability accuracy | Weighing pan size | N.W | Package Size | Working space height | Calibration method |
FA604C | 0-60g | 0.1mg | Φ90mm | 6.8kg | 480×375×515mm | 240mm | Internal calibration |
FA1004C | 0-100g | 0.1mg | Φ90mm | 6.8kg | 480×375×515mm | 240mm | Internal calibration |
FA1204C | 0-120g | 0.1mg | Φ90mm | 6.8kg | 480×375×515mm | 240mm | Internal calibration |
FA1604 | 0-160g | 0.1mg | Φ90mm | 6.8kg | 480×375×515mm | 240mm | Internal calibration |
FA2004C | 0-200g | 0.1mg | Φ90mm | 6.8kg | 480×375×515mm | 240mm | Internal calibration |
FA2204C | 0-220g | 0.1mg | Φ90mm | 6.8kg | 480×375×515mm | 240mm | Internal calibration |
3. Product features and application
● Humanized design, novel structure, five sides all transparent glass windshield. Using a new generation of electromagnetic balance type weighing sensor, to ensure the high precision of the product. With automatic fault detection, linear four-point calibration, overload protection and other applications.
● The use of large digital integrated circuit board, is the guarantee of product precision. Adopt double CAM mechanism to realize automatic internal calibration function, so that the product is more stable and fast.
● Balance with "preheating" "calibration", screensaver and other applications.
● Large LCD screen with backlight. Make the operator's vision more soft and clear.
● With piece-counting, unit conversion (metric carat, gold ounce, etc.), stability, full-range peeling, zero tracking and other functions, the operation is more simple and reliable.
● Internal automatic calibration, so that the balance operation is more convenient, stable performance, accurate.
● Built-in RS232C output interface, can be directly connected to computers, printers and other external equipment.
4. Product details
Balance equipped with:
Balance mainframe, scale plate, adapter, manual, product certificate, warranty card, standard weight, dust cover, cleaning cloth, brush, tweezers.
5. Product qualification
Yuke Product has obtained CE certification, TART certification, ISO quality management system certification, more than 10 software copyrights and multiple patents to ensure that each instrument has stable performance and excellent quality.
