Fourier Transform Infrared Spectrometer

YK-FTIR031

Product Category: FTIR

The FTIR920 Fourier transform infrared spectrometer is a high-precision Fourier transform infrared spectrometer developed by our company in cooperation with a well-known European FTIR manufacturer and combined with decades of infrared production experience. It uses a variety of special technologies to ensure that this compact infrared spectrometer has high performance. It adopts a unique optical design, software and hardware design, with stable and reliable performance, powerful functions and simple operation. It can be widely used in pharmaceutical, petroleum, chemical, environmental protection, food, material science and other fields


Products Detail Technical Parameter Feature And Application Fields Of Use Details Download

Instrument characteristics

Ø Accuracy improvement: Adopting a swinging interferometer structure, it has excellent stability and seismic resistance, and higher accuracy than traditional Michelson interferometers.

Ø Diverse testing: Adopting a large sample room design with dimensions of 200 * 260 * 160mm, compatible with various infrared accessories, such as solid tablet inserts, liquid pools, and ATR accessories. It can be equipped with large sample reflection accessories to test glass samples with dimensions of 300 * 300 * 20mm, meeting diverse testing needs.

Ø High sensitivity: The original imported DLATGS low-noise receiver enables trace analysis.

Ø Higher precision: We have adopted the original imported multi-layer coated KBr beam splitter, which has a diameter of 60mm and is equipped with a moisture-proof coating, ensuring significantly better performance than similar products. This beam splitter has the characteristics of high energy and high signal-to-noise ratio, providing you with more accurate and reliable analysis results.

Ø Dust and moisture prevention: The multiple sealing design and dehumidification drying box ensure adaptability to complex environments.

Ø Easy to maintain: The desiccant visual window is easy to observe and replace, and the energy of the interferometer can be adjusted without opening the cover, thus achieving convenient debugging.

Ø Other extensions: The instrument is equipped with a nitrogen blowing interface, which can reduce the interference of water and carbon dioxide in the air; The instrument comes with dehumidification function; Reserve a light source interface that can connect external light sources for extended development and use.

Ø Graph library function: equipped with two sets of operating systems in Chinese and English, and the Chinese system has a built-in infrared graph database.

Ø Meet GMP/GLP requirements: The system complies with certification standards and can achieve functions such as electronic signature, permission allocation, and audit tracking. 3Q certification is available.


Specification parameters

Light Source

imported long-life and high-strength air-cooled ceramic infrared light source

Detector

Imported low noise DLATGS

Spectral Range

7800-350cm-1 , covering the mid infrared spectral region

Resolution Ratio

better than 1.0 cm-1

Scanning Speed

2mm/S

Signal To Noise Ratio

45000:1 (P-P value, around 2100cm-1, 4cm-1 resolution, 1-minute data collection)

Wave number Accuracy

0.01 cm-1

Baseline Straightness

≤ 0.1% T

Beam Splitter Dameter

60mm

Beam Splitter

imported multi-layer coated KBr with moisture-proof coating

Aperture Ratio

1/3.2

Laser

VCSEL Laser

Sample Beam Diameter

10 mm

Beam Diameter

30 mm

Interferometers

automatic calibration

Cleaning Function

Yes

External Dimensions

590 * 390 * 190mm

Sample Room Size

200 * 260 * 160mm

Data Transmission

USB 2.0

Working Voltage

AC220V DC12V 40W

Operating System

Win10 and above systems

Weight

26 kg

Environmental Temperature

15-28 ℃

Relative Humidity

65% (no condensation)


Basic configuration:

1.  FTIR031 Fourier Transform Infrared Spectrometer

2.  Supporting English software

3.  AC power adapter and cable

4.  USB data cable

5.  Standard calibration sheet (polystyrene)

6.  1 set of supporting tools

7.  Quick operation guide

8.  Color changing silicone

9.  Transmission test attachments

10.  Reflection test attachments


Supporting tools:

1. Users need to prepare their own computer and printer

2. Optional accessories

AIR accessories, mirror reflection accessories, reflection diffuse reflection accessories, series powder tablet press, Zhe series tablet mold, Kai series liquid test accessories, Kai series gas test accessories, m series infrared drying box, cuvette and cuvette rack, polishing tools, etc.

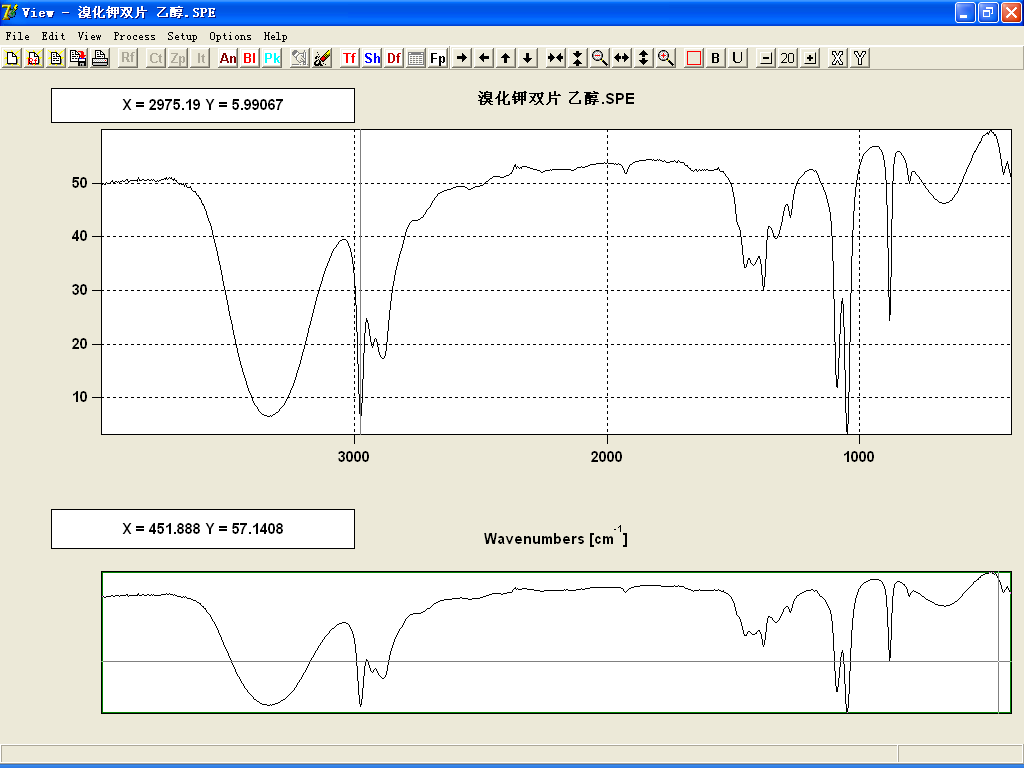

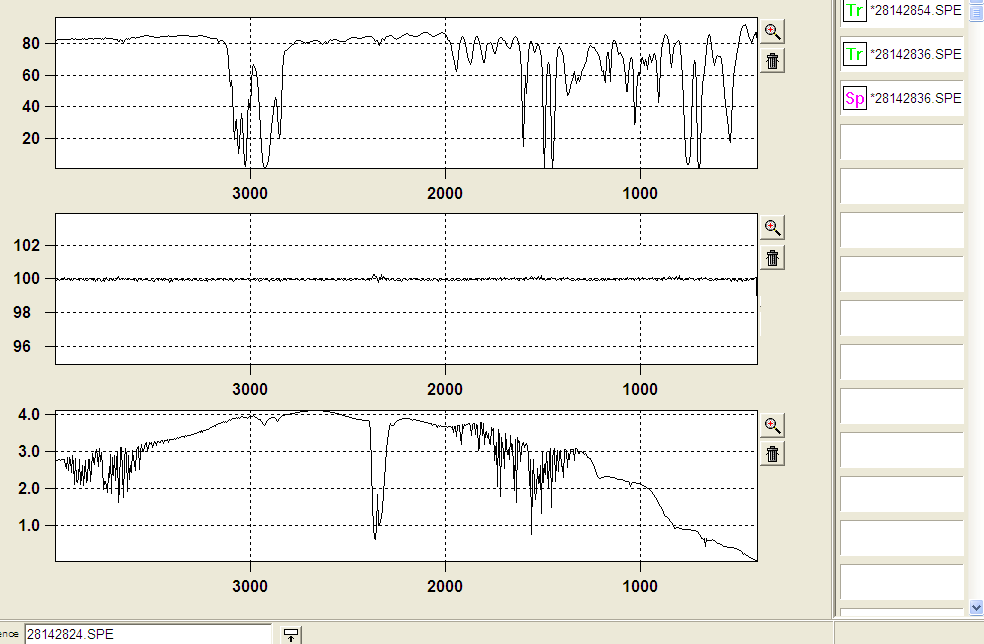

Software

The system software of FTIR031 can provide filtering, baseline correction, interactive editing, and data manipulation on the analysis model of interferograms or spectra. At the same time, it also has functions such as spectral deduction, mixed deduction, filtering derivation, and spectral preview. The data input and output can be in ASCII or JCAMP format. Other commercial programs, including Thermo/Galactic GRAMS, can also be used, such as library search. The Interspec software program is written in 32-bit protected mode. By adding other commercial programs such as search, component identification, Kramers Kronig transformation, chemical statistics, etc., the functionality of the program can be extended to meet individual needs.
