Our FTIR Spectrometer Now Operating at an SGS Laboratory – A Testament to Quality and Reliability
We are proud to announce a significant milestone for our FTIR Spectrometer series. An SGS laboratory – one of the world's leading inspection, verification, testing, and certification companies – has selected, installed, and is now actively using our FTIR instrument for their professional testing operations.
Why This Matters
SGS is globally recognized for its rigorous standards and uncompromising commitment to quality. When SGS chooses an instrument for its laboratory, it is because that instrument has demonstrated:
Reliability – Consistent performance day after day
Accuracy – Results that can be trusted for critical decisions
Durability – Built to withstand demanding laboratory environments
Value – Performance that justifies the investment
Our FTIR Spectrometer has met these criteria and is now contributing to SGS's testing capabilities. This real-world validation speaks directly to the quality and performance of our instrumentation.
About Our FTIR Spectrometer
Our FTIR (Fourier Transform Infrared) Spectrometer is designed for rapid, non-destructive identification and analysis of a wide range of materials. It is widely used in quality control, research and development, and regulatory compliance testing across multiple industries.
Key Specifications:
| Parameter | Specification |
|---|---|
| Spectral Range | 7800 – 350 cm⁻¹ (standard mid-IR) |
| Resolution | 1 cm⁻¹, 2 cm⁻¹, 4 cm⁻¹, 8 cm⁻¹, 16 cm⁻¹ (selectable) |
| Detector | High-sensitivity DLATGS (deuterated L-alanine doped triglycine sulfate) |
| Optional Detector | MCT (mercury cadmium telluride) for high-sensitivity applications |
| Beam Splitter | Multi-layer germanium coating on KBr substrate |
| Signal-to-Noise Ratio | ≥ 15,000:1 (peak-to-peak, 1 minute measurement) |
| Scan Speed | 0.2 – 2.5 cm/s (selectable, 8 levels) |
| Light Source | High-intensity ceramic (long-life, maintenance-free) |
| Sample Compartment | Standard 100mm clear aperture, compatible with ATR, transmission, and reflectance accessories |
Available Measurement Modes:
| Mode | Description | Best For |
|---|---|---|
| ATR (Attenuated Total Reflectance) | Diamond or ZnSe crystal – no sample preparation required | Polymers, rubbers, coatings, solids, liquids |
| Transmission | Sample prepared as KBr pellet or thin film | Powders, solids, quantitative analysis |
| Reflectance | Diffuse or specular reflectance | Surfaces, coatings, reflective materials |
Software Features:
Our FTIR software provides comprehensive data acquisition and analysis capabilities:
Real-time spectral display during measurement
Automatic baseline correction and normalization
Spectral library search (supports standard libraries including HR, Sadler, Nicolet formats)
User library creation and management
Quantitative analysis with calibration curve
Peak picking and identification
Multi-spectrum overlay for comparison
Data export (CSV, Excel, JCAMP-DX, text formats)
Report generation with customizable templates
Optional 21 CFR Part 11 compliant module for regulated pharmaceutical environments
Key Applications – As Demonstrated at the SGS Laboratory
1. Polymer and Plastic Identification
Fast, reliable identification of polymer types – from commodity plastics (PE, PP, PVC, PS, PET) to engineering polymers (PA, PC, ABS, POM, PEEK) and elastomers. Our FTIR with ATR accessory enables direct measurement without sample preparation – a key advantage for high-throughput testing environments like SGS.
2. Contaminant and Failure Analysis
Unknown spots, residues, or foreign materials can be identified in minutes. The FTIR spectrum provides a molecular "fingerprint" that can be matched against reference libraries to determine composition. This is critical for failure analysis, quality investigations, and regulatory compliance testing.
3. Pharmaceutical Raw Material Verification
Incoming raw material inspection is a regulatory requirement for pharmaceutical manufacturers. Our FTIR provides fast, non-destructive verification of active pharmaceutical ingredients (APIs), excipients, and packaging materials – helping ensure compliance with GMP and pharmacopoeia standards (USP, EP, JP).
4. Chemical Compound Identification
From fine chemicals to industrial intermediates, FTIR provides rapid identification of unknown substances. The SGS laboratory uses our instrument for routine chemical screening, supporting their testing and certification services across multiple client industries.
5. Environmental Sample Screening
Microplastics, soil contaminants, water pollutants – FTIR is increasingly used for environmental sample characterization. The technique is non-destructive and requires minimal sample preparation.
Complete System Package
Each FTIR Spectrometer is supplied as a complete package, including:
| Component | Description |
|---|---|
| FTIR Main Unit | Optical bench with interferometer, light source, and detector |
| Sample Accessories | ATR crystal (diamond or ZnSe), KBr pellet press, liquid cell (optional) |
| Software | Full acquisition and analysis software with spectral library |
| Computer & Monitor | Pre-installed with software (optional, customer supplied) |
| Consumables | Desiccant, KBr powder, spare parts kit |
| Documentation | User manual, calibration certificate, quick start guide |

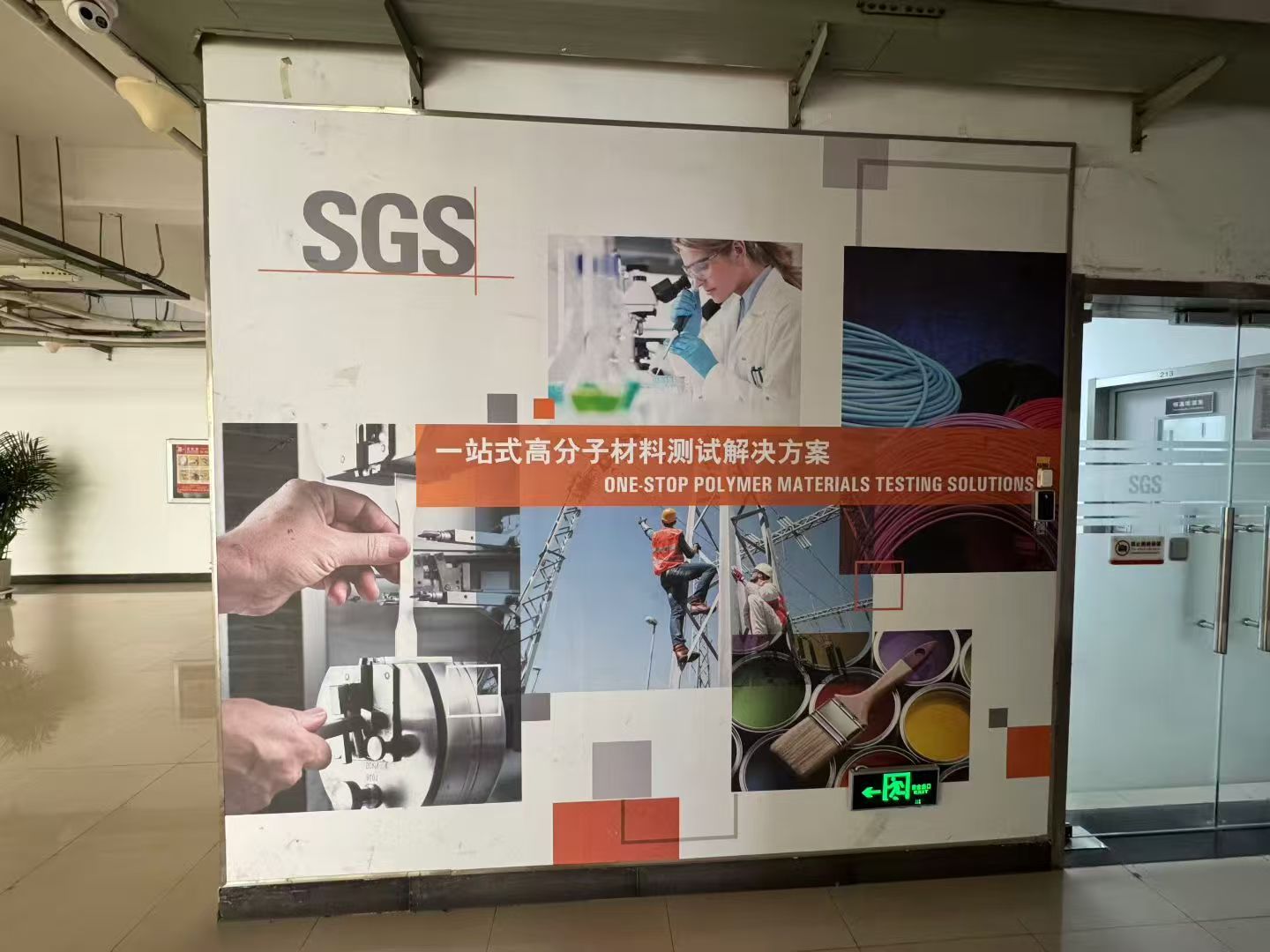

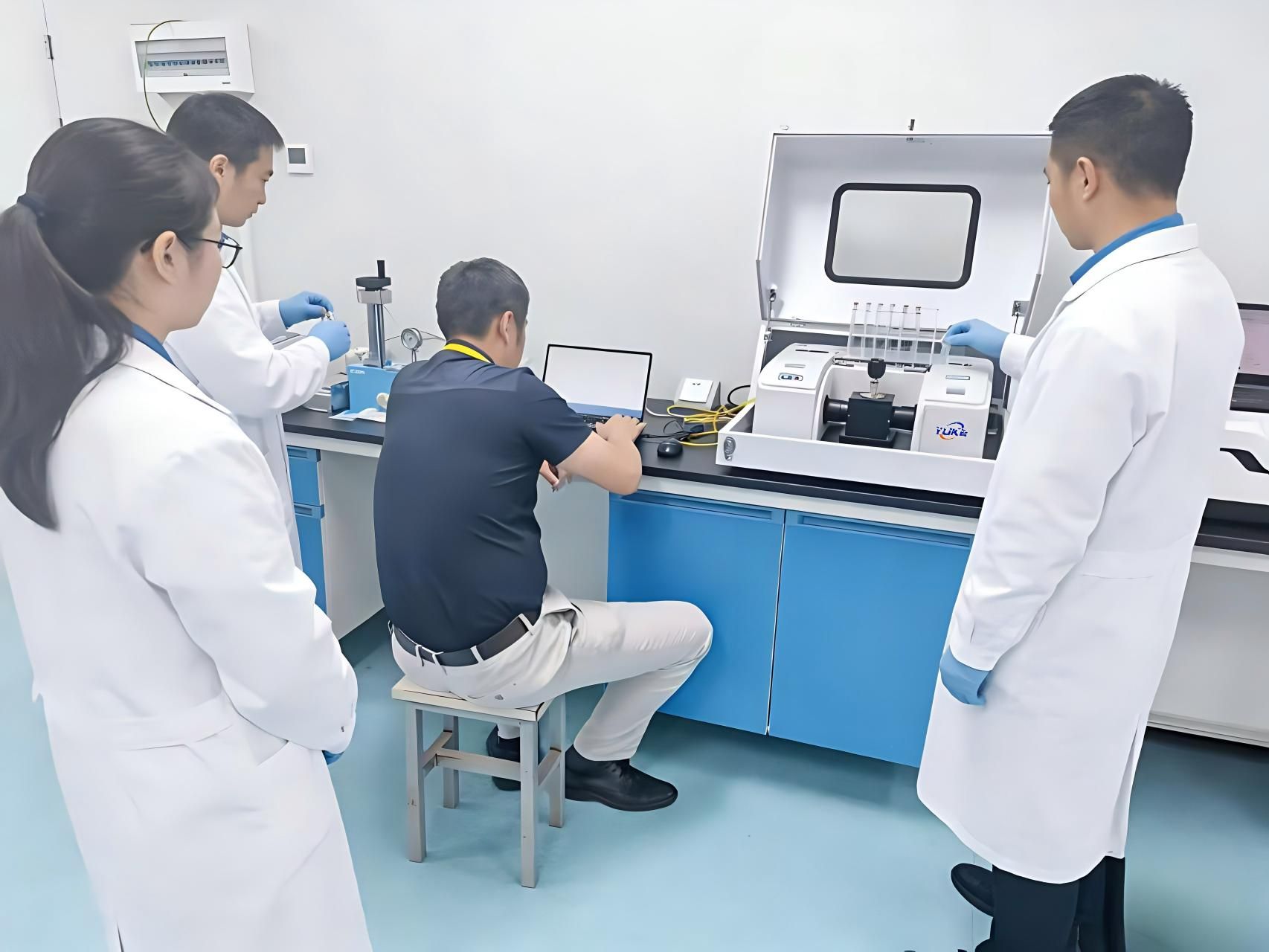

SGS Laboratory Installation – Photo Documentation
These images show our FTIR Spectrometer in a real-world, professional testing environment. The instrument is integrated into SGS's daily operations, supporting their commitment to accurate, reliable testing and certification services.
Quality Assurance and Compliance
Our FTIR Spectrometers are manufactured under ISO 9001 quality management systems. Each instrument undergoes:
Optical alignment verification
Spectral performance testing (resolution, signal-to-noise ratio, wavenumber accuracy)
Baseline stability verification
Software functional testing
Final inspection and calibration
Industries We Serve
| Industry | Typical Applications |
|---|---|
| Plastics & Polymers | Material identification, quality control, failure analysis |
| Pharmaceuticals | Raw material verification, polymorph screening, GMP compliance |
| Chemicals | Compound identification, reaction monitoring, purity assessment |
| Environmental | Microplastics, soil contaminants, water quality |
| Food & Beverage | Adulteration detection, ingredient verification |
| Academic Research | Teaching laboratories, material characterization |
| Testing & Certification | Third-party analysis, regulatory compliance testing (as demonstrated by SGS) |
Customization and Support
As a manufacturer, we offer:
Language options – English, Russian, Chinese, Arabic, and other languages available
Accessory configuration – Customize your sample accessory kit based on applications
Spectral library customization – Pre-load specific libraries for your industry
OEM / private label – Your branding on the instrument and packaging
Training – On-site or remote training for your laboratory staff
Technical support – Email, WhatsApp, and video call support for troubleshooting
Why Choose Our FTIR Spectrometer?
<td style="border-bottom-width: 0.666667px; border-bottom-color: rgba(0, 0, 0, 0.1); font-variant-numeric: normal; font-variant-east-asian: normal; font-variant-alternates: normal; font-size-adjust: none; font-language-override: normal; font-kerning: auto; font-optical-sizing: auto; font-feature-settings: normal; font-variation-settings: normal;
| Advantage | How It Benefits You |
|---|---|
| SGS-tested reliability | Proven performance in a world-class testing laboratory |
| In-house manufacturing | Direct technical support, faster customization, competitive pricing |
| High-performance optics |
