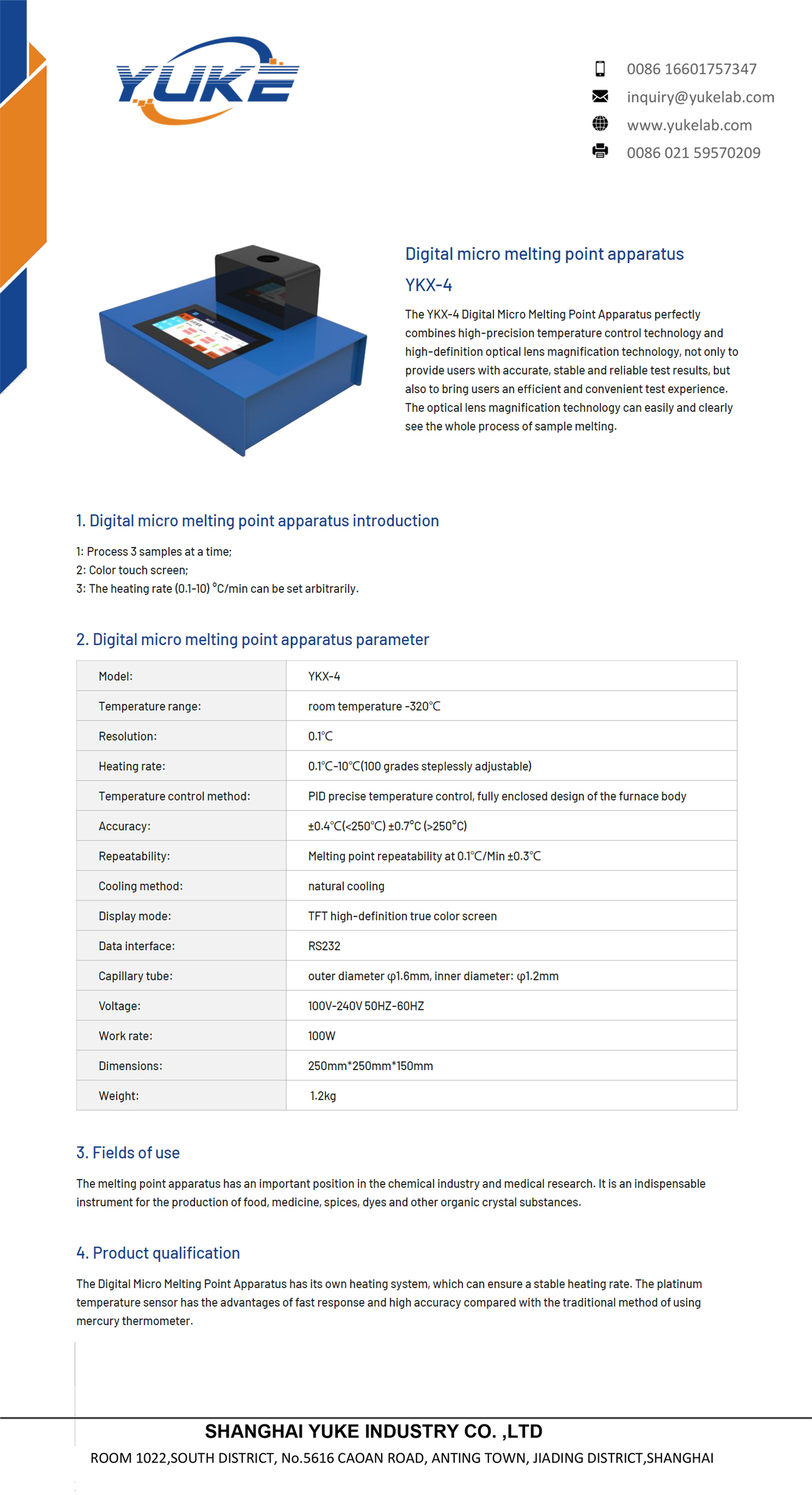

1. Digital micro melting point apparatus introduction
1: Process 3 samples at a time;
2: Color touch screen;
3: The heating rate (0.1-10) °C/min can be set arbitrarily.
2. Digital micro melting point apparatus parameter
Model: | YKX-4 |
Temperature range: | room temperature -320℃ |
Resolution: | 0.1℃ |
Heating rate: | 0.1℃-10℃(100 grades steplessly adjustable) |
Temperature control method: | PID precise temperature control, fully enclosed design of the furnace body |
Accuracy: | ±0.4℃(<250℃) ±0.7°C (>250°C) |
Repeatability: | Melting point repeatability at 0.1℃/Min ±0.3℃ |
Cooling method: | natural cooling |
Display mode: | TFT high-definition true color screen |
Data interface: | RS232 |
Capillary tube: | outer diameter φ1.6mm, inner diameter: φ1.2mm |
Voltage: | 100V-240V 50HZ-60HZ |
Work rate: | 100W |
Dimensions: | 250mm*250mm*150mm |
Weight: | 1.2kg |
3. Fields of use
The melting point apparatus has an important position in the chemical industry and medical research. It is an indispensable instrument for the production of food, medicine, spices, dyes and other organic crystal substances.
4. Product qualification
The Digital Micro Melting Point Apparatus has its own heating system, which can ensure a stable heating rate. The platinum temperature sensor has the advantages of fast response and high accuracy compared with the traditional method of using mercury thermometer.
