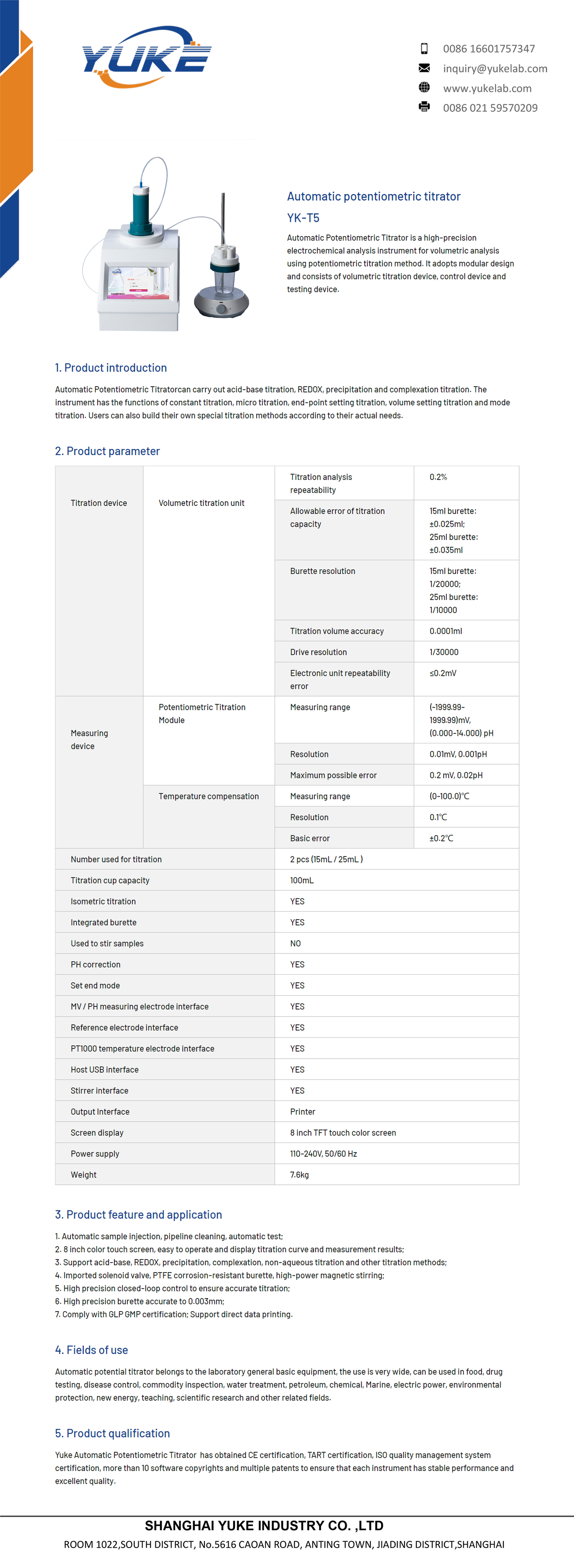

1. Product introduction
Automatic Potentiometric Titratorcan carry out acid-base titration, REDOX, precipitation and complexation titration. The instrument has the functions of constant titration, micro titration, end-point setting titration, volume setting titration and mode titration. Users can also build their own special titration methods according to their actual needs.
2. Product parameter
Titration device | Volumetric titration unit | Titration analysis repeatability | 0.2% |
Allowable error of titration capacity | 15ml burette:±0.025ml; 25ml burette: ±0.035ml |
Burette resolution | 15ml burette: 1/20000; 25ml burette: 1/10000 |
Titration volume accuracy | 0.0001ml |
Drive resolution | 1/30000 |
Electronic unit repeatability error | ≤0.2mV |
Measuring device | Potentiometric Titration Module | Measuring range | (-1999.99-1999.99)mV, (0.000-14.000) pH |
Resolution | 0.01mV, 0.001pH |
Maximum possible error | 0.2 mV, 0.02pH |
Temperature compensation | Measuring range | (0-100.0)℃ |
Resolution | 0.1℃ |
Basic error | ±0.2℃ |
Number used for titration | 2 pcs (15mL / 25mL ) |
Titration cup capacity | 100mL |
Isometric titration | YES |
Integrated burette | YES |
Used to stir samples | NO |
PH correction | YES |
Set end mode | YES |
MV / PH measuring electrode interface | YES |
Reference electrode interface | YES |
PT1000 temperature electrode interface | YES |
Host USB interface | YES |
Stirrer interface | YES |
Output Interface | Printer |
Screen display | 8 inch TFT touch color screen |
Power supply | 110-240V, 50/60 Hz |
Weight | 7.6kg |
3. Product feature and application
1. Automatic sample injection, pipeline cleaning, automatic test;
2. 8 inch color touch screen, easy to operate and display titration curve and measurement results;
3. Support acid-base, REDOX, precipitation, complexation, non-aqueous titration and other titration methods;
4. Imported solenoid valve, PTFE corrosion-resistant burette, high-power magnetic stirring;
5. High precision closed-loop control to ensure accurate titration;
6. High precision burette accurate to 0.003mm;
7. Comply with GLP GMP certification; Support direct data printing.
4. Fields of use
Automatic potential titrator belongs to the laboratory general basic equipment, the use is very wide, can be used in food, drug testing, disease control, commodity inspection, water treatment, petroleum, chemical, Marine, electric power, environmental protection, new energy, teaching, scientific research and other related fields.
5. Product qualification
Yuke Automatic Potentiometric Titrator has obtained CE certification, TART certification, ISO quality management system certification, more than 10 software copyrights and multiple patents to ensure that each instrument has stable performance and excellent quality.
